Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

Name: Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat
Brand: Surplus
Price: 1 USD

Brand Name : Surplus

Model Number : PTFE Tank 16

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : T/T,

Supply Ability : 50 PC/Month

Delivery Time : 10-15 working days

Packaging Details : Wooden Case or Carton Box

Name : Outside SUS316 Inner PTFE Wet Process Tank With Conductive Copper Plate Lead Anode And Thermostat

Material : PTFE

Production process : one-piece molding or double-sided welding

Dimension : according customer's requirement

Contact Now

Outside SUS316 Inner PTFE Wet Process Tank With Conductive Copper Plate Lead Anode And Thermostat

Overview

Steel-lined plastic electrolytic cells are widely used in industrial pickling industries such as metallurgy and electroplating:
1. Used for pickling the surface of titanium-nickel alloy, stainless steel and other copper and aluminum metals to remove oil and rust;
2. Promote the removal of stubborn oxide scale on the metal surface

Surplus designed process and rinse tanks are constructed from a single sheet of application specific plastic material that is CNC machined and then folded into the form of your tank using the “ORIGAMI” method. Welded corners can create particle/contamination traps and can leak due to workmanship, thermal cycling, and/ or prolonged chemical exposure. However, the “ORIGAMI” method minimizes welding and provides smooth, seamless, rounded interior corners.

The “ORIGAMI” design and fabrication approach combined with over 40 years of wet process experience provides optimum process and rinse results at the lowest possible cost.

PTFE tanks are available in configurations for all substrate and cassette sizes in standard or custom designs. Review your tank application and requirements with our sales staff to receive a cost-effective quotation in a timely manner. Sales drawings of standard tanks are available upon request.

PTFE Wet Process tank Features:

Custom-mode product to be manufactured by our experienced welders to the
satisfaction of the customer. The maximum size we delivered is 2.0 m × 2.5 m × 2.0 m.

PTFE Wet Process tank Main applications:

• Washing tank (Silicon wafer etc.)
• Washing tank for temperature control
• Storage of chemical

PTFE Wet Process tank Characteristics:

• The mold is not required, and is economical for smaller lots.
• Free designs are possible to meet various needs.

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Other Applications

Precious Metal Deposition
Engineered to meet the most stringent requirements, accurate and reliable Heaters in Precious Metals' Deposition reduce materials waste. Low ripple Power Supplies provide clean and smooth direct current (DC), precision results while also saving on materials.

Products For General Metal Finishing

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.

Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat

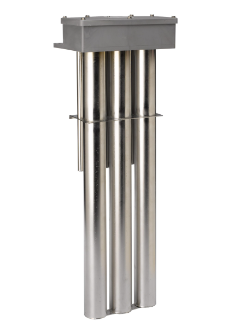

MOTS TRIPLE
Metal over the side heater. Three phase. 3000-36000 watts. 208-600 volts.

Outside SUS316 Inner PTFE Tank With Conductive Copper Plate Lead Anode And Thermostat
